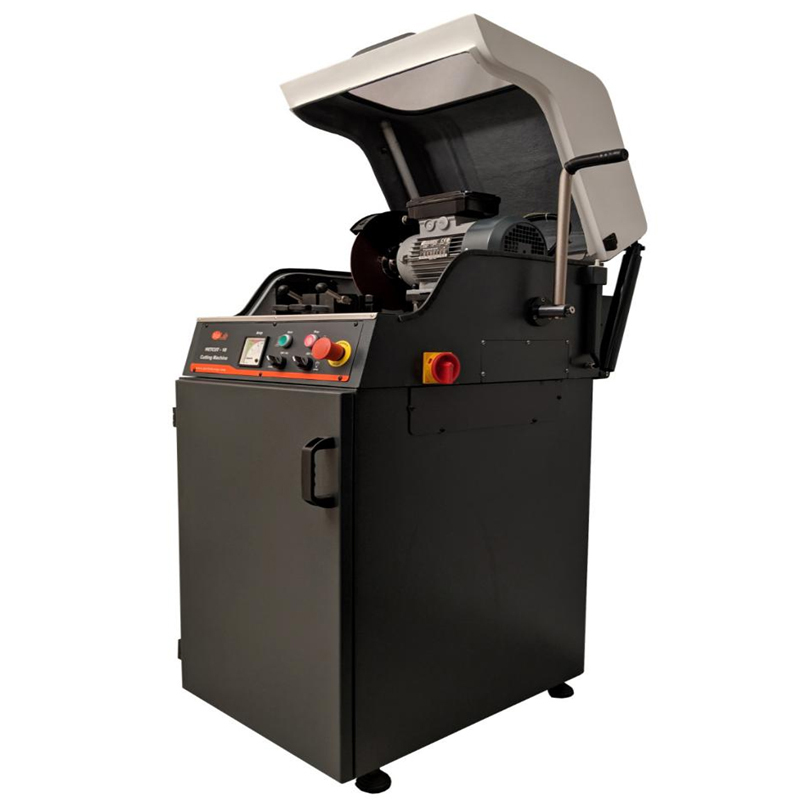

METCUT-10 FLOOR-STANDING MANUAL ABRASIVE CUTTER
METCUT-10 FLOOR-STANDING MANUAL ABRASIVE CUTTER
METCUT-10 FLOOR-STANDING MANUAL ABRASIVE CUTTER
- 产品详情
- 产品参数
| METCUT-10 Floor-Standing Manual Abrasive Cutter Performances | |
| ● METCUT-10 is an economical and practical manual abrasive cutter for metallographic needs. Cut-off wheel 10in. | |
| ● Designed simply to easy install, use, maintain and repair. | |
| ● Floor-Standing model. | |
| ● Hood safety limit switch ensures safe operation. | |
| ● Hood can be opened 90 degrees, convenient for various operations. | |
| ● A 60 degree shatter proof viewing window allows a clear view of the cutting chamber. | |
| ● LED lamp makes sure clear and bright cutting chamber. | |
| ● Anti-corrosion T-slot table, spacious space. | |
| ● Various vises meet the fixation of samples with different shapes. | |
| ● Electronic motor brake. | |
| ● Overload protection. | |
| ● Amp meter indicates the cutting force level to prevent overloading and burning the sample. | |
| ● Side wall opening for long specimens. | |
| ● Epoxy coated chamber for easy clean-up, corrosion resistant. | |
| ● External cleaning nozzle for easy wash down. | |
| ● 50L recirculation coolant tank with rollers, triple filtration system. | |
| ● Rust proof steel construction to meet a variety of working conditions. | |
● A full range of cut-off wheels provide versatility in sectioning to suit a wide variety of materials, is the basic cutter of metallographic lab. |
| METCUT-10 Floor-Standing Manual Abrasive Cutter Technical Parameters | ||||
| Main | 380V, 3 Phase, 50Hz | |||
| Motor Power | 3.5Hp (2.57kW) | |||
| Current | 10A | |||
| Cutting Capacity | 90mm | |||
| Abrasive Cut-Off Wheel Diameter | Up To 10in (254mm) | |||
| Arbor Diameter | 1.25in (32mm) | |||
| Wheel Speed | 2865rpm | |||
| Operation Modes | Z-axis Manual Chop Cutting, X-axis Movement Table (Optional) | |||
| T-Slot Size | 12mm | |||
| T-Slot Table Size (W×D) | 245×200mm | |||
| Coolant Unit | 13gal (50L) Recirculating Coolant Tank, With Rollers, Triple Filtration System | |||
| Coolant Circulation Rate | 63L/min | |||
| Coolant Tank Size (W×D×H) | 360×530×620mm | |||
| Light | LED Lamp | |||
| Load Indication | Amp Meter | |||
| Size (W×D×H) | 559×830×1320mm, H1600mm Open | |||
| Weight | 177kg | |||
| METCUT-10 Floor-Standing Manual Abrasive Cutter Ordering Informations | ||||
| Part Number | Description | |||
| 50 02 | Floor-Standing Manual Abrasive Cutter METCUT-10 | |||
| 50 02-LV | Quick Acting Vise, Left, Max. Opening 84mm | |||
| 50 02-RV | Quick Acting Vise, Right, Max. Opening 84mm | |||
| 15 01 | MB 1011 Quick Clamping Device With Clamping Shoe, Max. Clamping Height 90mm | |||
| 50 02-RT | Recirculation Coolant System, 13gal (50L) | |||
Brand
USA/MetLab
Description
METCUT-10 series of abrasive cutting machines offer an economical solution to your metallographic sample preparation needs. Floor-standing model can be placed independently along the wall, saving space and affording easy operation.
