METCUT-5 Low Speed Precision Cutter Performances
●   METCUT-5 is an economical low-speed precision cutter. Sectioning blade diameter 3in-5in.
●   Low speed makes slicing of all types of materials easier.
●   Gravity feed with weights, repeatable.
●   Benefits small damage and minimal deformation.
●   Simple and convenient operation.
●   The emergency switch is eye-catching and should be turned off at any time.
●   Advanced color touch screen, clear and friendly.
●   Movable clear safety splash guard.
●   Movable built-in recirculation coolant tray.
●   Automatic cut-off switch offers an unattended cutting.
●   Various flanges and specimen vises.
●   Manual dressing blade, flexibility and convenience.
●   Compact body and small space requireed.
●   Aluminum base with rust proof construction, durable.

●   Particularly suitable for cutting small, soft, brittle, irregular shaped samples, such as metal materials, composite materials, plastics,

     electronic components, biological materials, ceramics, cements, rocks and ores, etc. Also commonly used for re-sectioning and thinning

     sample preparation.

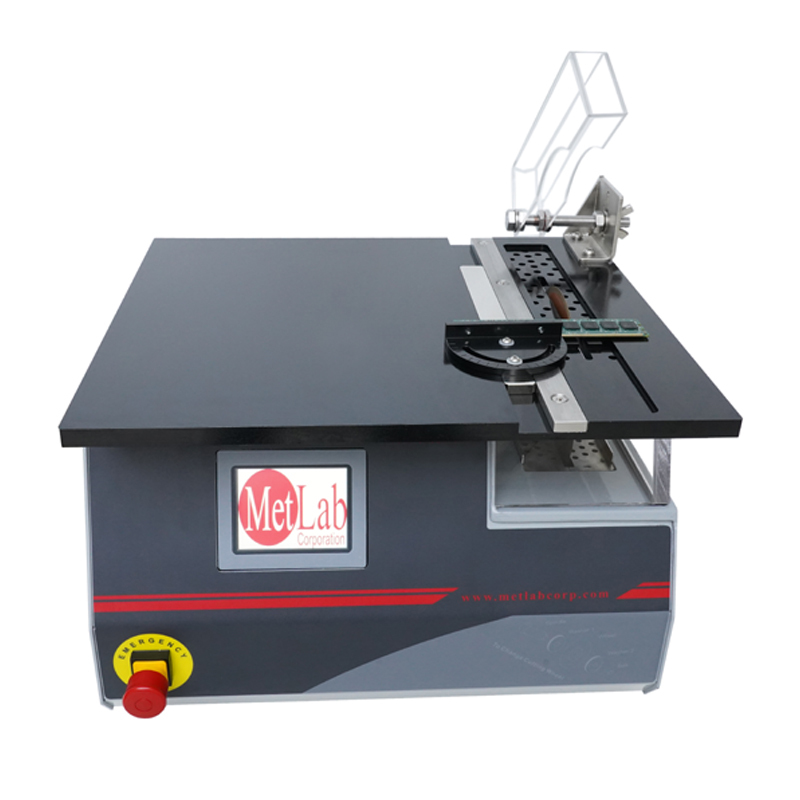

●   Platform of table saw for circuit boards and other planar cutting applications (Optional).


METCUT-5 Low Speed Precision Cutter Technical Parameters
Main220V, 1 Phase, 50Hz
Motor Power100W
Cutting CapacityUp to 30mm
Wheel Diameter3in-5in(76mm-127mm), Cutting On Platform Used 6in(152mm)
Arbor Diameter0.5in(12.7mm)
Wheel SpeedVariable Speed 60-600rpm
Cut TypeGravity Feed Chop Cutting
Gravity Feed Weights0-450g
Micrometer For Cross Feed0-25mm
Positioning Accuracy0.01mm
  Platform Size (W×D)   395×345mm
Coolant UnitMovable Built-in Recirculating Coolant Tray
ScreenColor Graphical Touch Screen
Size (W×D×H)387×333×365mm
Weight28kg


  METCUT-5 Low Speed Precision Cutter Ordering Informations

Part NumberDescription
50 01Low Speed Precision Cutter METCUT-5
GR 0400Single Saddle Vise
GR 0401Double Saddle Vise
GR 0403Irregular Shape Specimen Vise
GR 0431Teardrop Shape Specimen Vise
GR 0433Round and Mounted Specimen Vise, Up To 30mm
GR 0434Round and Mounted Specimen Vise, Up To 40mm
CW-4Weight Set
CF-138Flange Set, 1.38in(35mm)
CF-250Flange Set, 2.5in(64mm)
CS-1Dressing Stick
50 01-PPlatform for Table Saw



ABUIABACGAAgqcau_AUo4Ir13QYwoAY4tAI 拷贝.jpg




Brand
USA/MetLab
Description
Precision section saw is designed for slicing all type of materials with ease. The slow speed cutter is mostly used for accurate sectioning of very small, hard components for R & D.
